ECOTEC TFC 50 HIGH LEVEL FEEDER CONVEYOR

PRODUCT TYPE: Hopper Feeder Conveyor

VENDOR: Terex Ecotec

CLICK HERE to download brochure

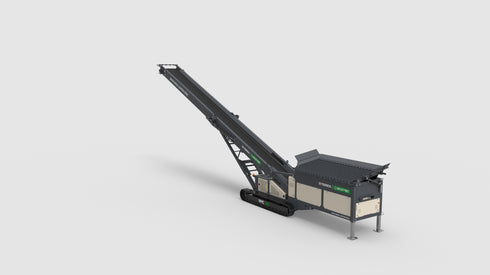

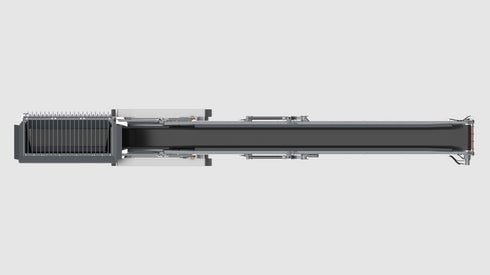

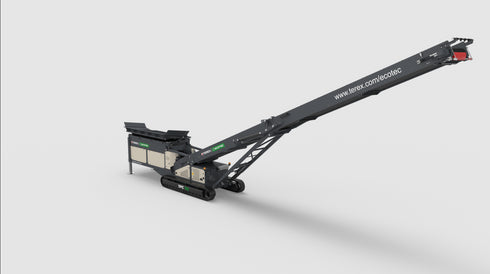

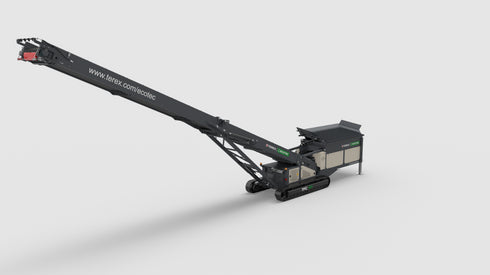

Ecotec's TFC 50 High Level Feeder combines the highly versatile feeder system with stockpiling conveyor allowing the operator to directly discharge from wheel loaders to reduce the amount of material handling on site. The fully mobile units can be used for a ‘metered or controlled’ feed of material into any Ecotec equipment or other machines.

Features & Benefits
  • Automatic greasing cartridges at head drum.
  • Hydraulic folding head section
  • Pinless deployment
  • Fully protected powerunit with easy access for service and maintenance.

    Tier 3: CAT 4.4 62kW (83hp)

    Stage V: CAT 2.2 55kW (74hp)

    Fuel tank volume: 145L (38 US GAL)

  • Undercarriage with heavy duty tracks.
  • Hopper capacity (not ripping grid fitting) 5.5 Cu.Yd
  • Feeder Belt width 1050mm (42”)
  • Variable speed control
  • Hydraulically adjusting jacking legs
Specification Table
Conveyor Length
75'2" / 22.9m
Belt Width
42" / 1,050mm
Max Discharge Height
35'9" / 10.9m

* All information subject to machine configurations & specifications ordered.

** ECOTEC reserves the right to change specifications without prior notice.
