PRODUCT TYPE: Hopper Feeder Conveyor

VENDOR: Terex Ecotec

CLICK HERE to download brochure
CLICK HERE to view video

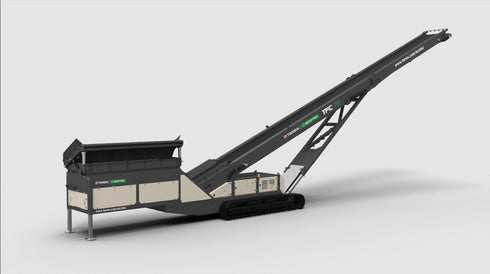

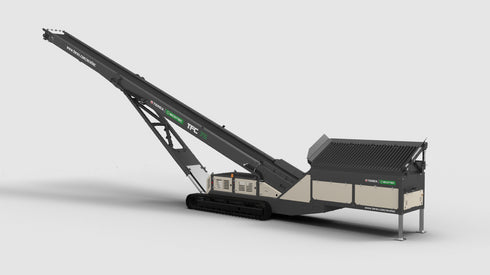

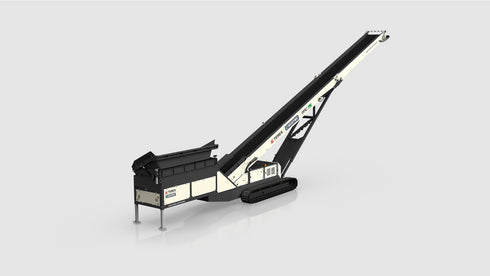

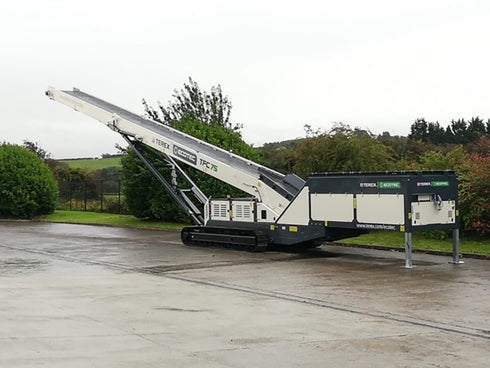

Ecotec's TFC 75 High Level Feeder Conveyor is a robust, high capacity hopper feeder that is suited to the most demanding applications.  Operators have the ability to directly discharge from wheel loaders / excavators eliminating the double handling of material onsite.  The fully mobile TFC 75 allows a controlled feed of material into Ecotec shredders and screens.

Features & Benefits
  • Automatic greasing cartridges at head drum
  • Hydraulic folding head section
  • Kick out/kick in pressure sensor to reduce blockages
  • Pinless deployment
  • Fully protected power unit with easy access for service and maintenance

    Stage 3A: CAT C4.4 83kW (111hp)

    Tier 4/Stage IV: CAT C4.4 82kW (110hp)

    Stage V: CAT C3.6**

    Fuel tank volume: 325L (85 US GAL)
  • Undercarriage with heavy duty tracks
  • Hopper capacity 9.15 Cu.Yd.
  • Variable speed control
  • Feeder belt width 1200mm
  • Hydraulically adjusting jacking legs.
Specification Table
Conveyor Length
74'2" / 22.6m
Belt Width
47" / 1,200mm
Max Discharge Height
32'2" / 9.8m

* All information subject to machine configurations & specifications ordered.

** ECOTEC reserves the right to change specifications without prior notice.
