VENDOR: Terex Ecotec

CLICK HERE to download brochure

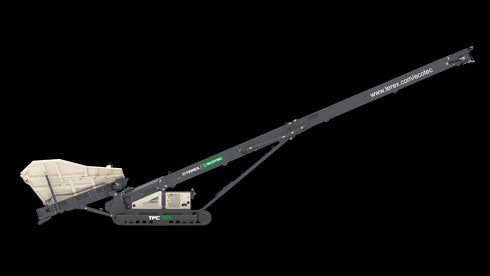

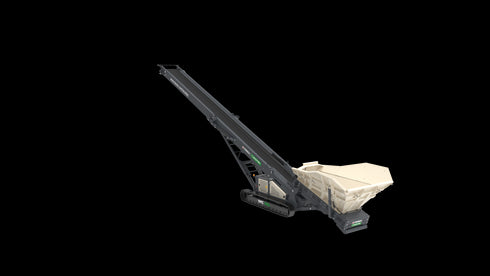

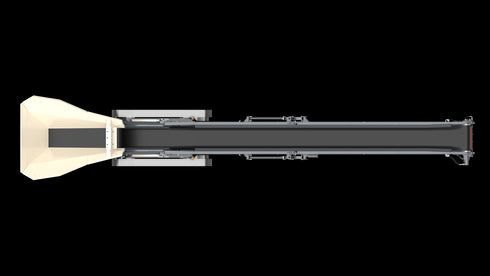

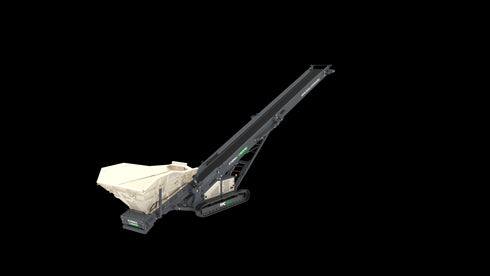

Ecotec's TFC 50L Low Level Feeder allows the operator to directly discharge from wheel loaders and excavators at a significantly lower feed in height compared to standard hopper feeders. The unique design of the hopper allows for rear feeding which can be an advantage when operating in restricted areas.

Features & Benefits
  • Hydraulic folding head section
  • Pinless deployment
  • Automatic greasing cartridges at head drum
  • Fully protected power unit with easy access for service and maintenance

    Tier 3: CAT 4.4 62kW (83hp)

    Stage V: CAT 2.2 55kW (74hp)

    Fuel Tank Capacity: 145L (38 US GAL)

  • Undercarriage with heavy duty tracks
  • Twin hydraulic drive feed conveyor
  • Feeder belt width 1050mm
  • AR400 Hopper
  • Tubular feed support frame as standard
Specification Table
Conveyor Length
40'1" / 12.2m
Belt Width
9'1" / 2.77m
Max Discharge Height
8'4" / 2.55m

* All information subject to machine configurations & specifications ordered.

** ECOTEC reserves the right to change specifications without prior notice.
