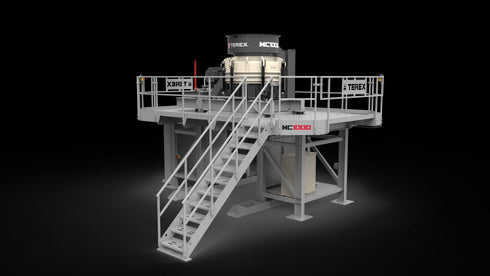

MC1000 Cone Crusher Module

PRODUCT TYPE: Cone

VENDOR: Cedarapids

CLICK HERE to download brochure
CLICK HERE to view video
DESCRIPTION

    The MC1000 Modular Cone Crusher handles an all-in feed for continuous crushing. Its 40” (1000mm) cone has a full range of configurations for short and long throw. The all-roller bearing design delivers enhanced crushing efficiency. Set up time and ease of operation is aided by the simplicity of the modular product range. All of our modular crushers and modular screens bolt together on site and require minimal on-site wiring. Designed with logistics in mind, the MC1000 Cone Module, including all its components, can be transported in one container.



    Options

    • Overflow chute
    • Electrical switch gear panel
    • Off plant conveyor starter kit
    • Ultrasonic level control
    • Operator working light kit
    • Cone feed camera





    Specification



    Weight

    40,785 lbs / 18,500 kg

    Working Length

    21'11"

    Working Width

    23'1"

    Working Height

    15'1"

    Motor Size

    250 hp / 185 kW

    Capacity

    180-228 tph / 198-251 mtph
