MC1300 Cone Crusher Module

PRODUCT TYPE: Cone

VENDOR: Cedarapids

CLICK HERE to download brochure
CLICK HERE to view video
DESCRIPTION

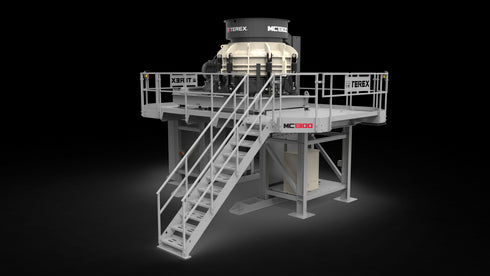

    Our MC1300 Cone Module has a 51” (1300mm) cone with full short and long throw configurations, and all-roller bearing design. Set-up time and ease of operation is aided by the simplicity of the modular product range. All modules bolt together on site and require minimal on-site wiring. Designed with logistics in mind, the MC1300 Cone Module, including all its components, can be easily transported in shipping containers.

    Options

    • Overflow chute
    • Electrical switch gear panel
    • Off plant conveyor starter kit
    • Ultrasonic level control
    • Operator working light kit
    • Cone feed camera

    Specification

    Weight


    66,140 lbs / 30,000 kg

    Working Length

    21' 11"

    Working Width

    23' 1"

    Working Height

    16' 1"

    Motor Size

    300 hp / 225 kW

    Capacity

    388-457 tph / 352-415 mtph
