MC320 Cone Crusher Module


VENDOR: Cedarapids

CLICK HERE to download brochure
CLICK HERE to view video

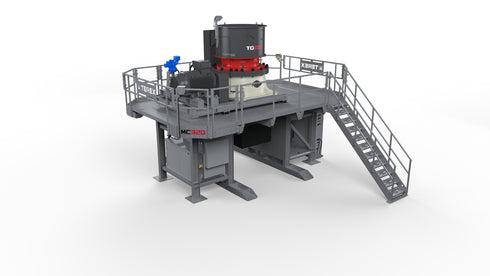

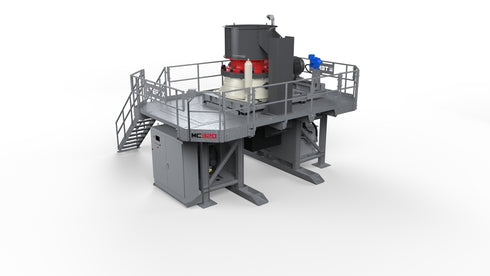

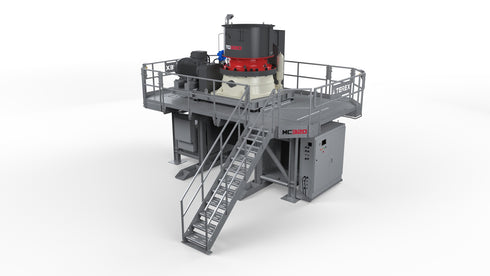

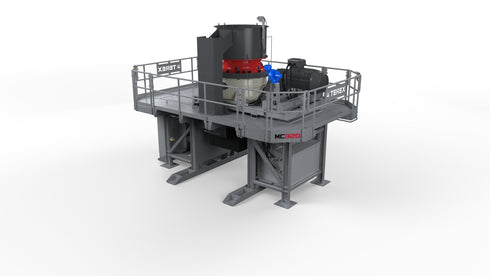

    The MC320 cone module features the TG320 or optional TGS320 cone on the same universal base structure as the MC and MV Series modular lines. The all electric, pre-engineered solution can be easily transported in standard containers and can be bolted together onsite quickly with basic tools and minimal wiring.

    The galvanized steel structure includes oversize walkways, repositionable stairs and guard rails for safe access. Four plant emergency stops are placed conveniently around the platform for easy access during operation.

    The MC320 comes with standard crusher controls but can be optioned up with the addition of the CCM switchgear panel. Additional options include an overflow chute and off plant conveyor starter kit.



    61,510 lb (with TG320) / 66,360 lb (TGS320)

    Working Length

    21' 11"

    Working Width

    14' 7"

    Working Height

    14' 10"

    Motor Size

    300 hp / 225 kW


    419-452 tph / 380-410 mtph
