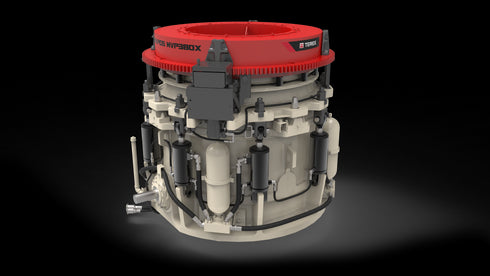

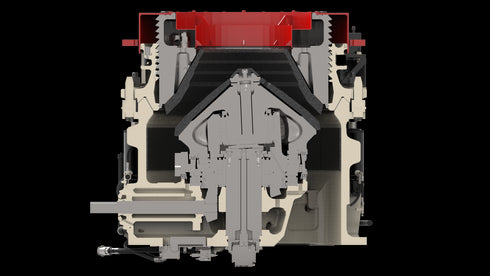

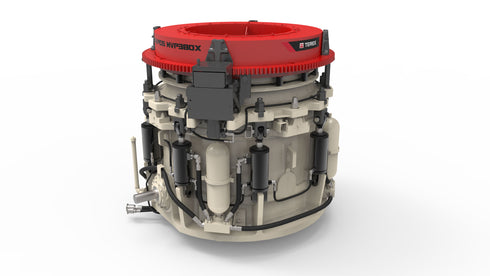

MVP380X Cone Crusher Chamber

PRODUCT TYPE: Cone

VENDOR: Cedarapids

CLICK HERE to download brochure
CLICK HERE to view video
DESCRIPTION

    MVPX cone crushers simply pulverize everything that stands in the way of success. Inside and out, the advanced engineering of the MVPX sets industry benchmarks, featuring a patented Rollercone® roller bearing design and the hydro-pneumatic tramp iron relief system that revolutionized the industry. The complete MVPX line includes four different models in stationary or portable configurations, from 200 to 500 horsepower, processing up to 800 TPH and capable of handling sand and gravel, shot rock and recycled materials. Each machine offers you an array of competitive advantages—from improved product quality to high throughput capacities to low operational costs. Cedarapids MVPXs—the leading force in compression crushers.

     Specification

    Weight

    46,000 lbs / 20,800 kg

    Head Diameter

    48" / 1219 mm

    CSS Range

    3/8"-2" / 10-51 mm

    Capacity

    135-560 tph / 123-507 mtph
