Chieftain 1400 Track Screener

PRODUCT TYPE: Screener

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video
DESCRIPTION

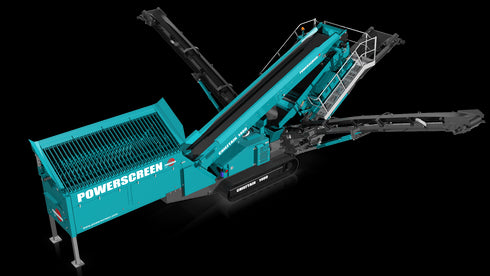

The Powerscreen® Chieftain 1400 is one of Powerscreen’s most popular screening products and is ideally suited for small to medium sized operators and contractors who require a versatile product capable of operating in a number of applications such as sand and gravel, aggregates and recycling. User benefits include hydraulic folding conveyors for a quick set-up time, screen walkways and access ladders for ease of maintenance, and a drop down tail conveyor to aid screen media changes.
    Features & Benefits
    • Output potential up to 400 tph (441 US tph)
    • Radio controlled tipping grid
    • Integrated high capacity variable speed belt feeder
    • Grease filled patented 4 bearing, 2 deck screen box
    • Hydraulic screen angle adjustment
    • Screen walkway and access ladder
    • Hydraulic folding conveyors
    • Engine protection shutdown system
    • Patented 4 bearing screenbox
    Options
    • Double deck vibrating grizzly
    • Radio controlled tracks
    • Roll-in bogie prepared
    • Roll-in bogie equipped
    • Quick release screen wedge tensioning
    • Anti roll-back
    • Auto lubrication system
    • Hydraulic screen tensioning (Bottom Deck)
    Specification Table
    1400 Track 1400 Wheel
    Weight 54,895lbs
    48,502lbs
    Transport width 9' 2"
    9'
    Transport length 51'
    55' 7"
    Transport height 11' 2"
    12' 8"
    Working width 53' 2" 53' 2"
    Working length 53' 9" 53' 9"
    Working height 16' 10"
    15' 7"
    Screenunit  11' x 5’ 11' x 5’
    Screenunit type 4 Bearing 4 Bearing
    Screenunit Bottom 2 off 3.0 x 1.5m (10' x 5’) 2 off 3.0 x 1.5m (10' x 5’)



    * All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
