Chieftain 1700 & 1700S 2 Deck Track Screen

PRODUCT TYPE: Screener

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

DESCRIPTION

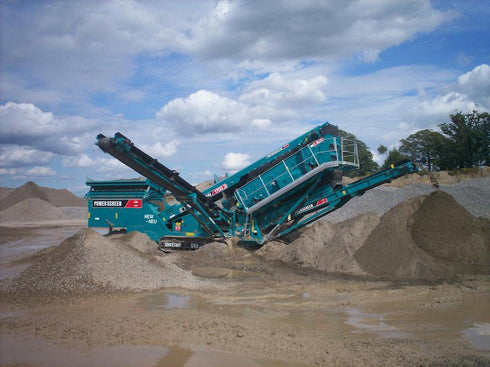

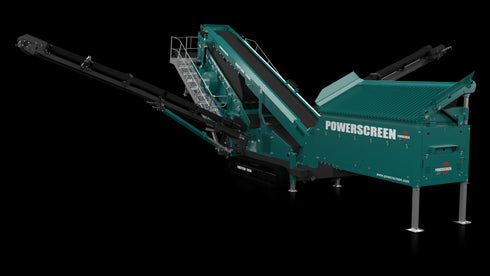

 The Powerscreen® Chieftain 1700 / 1700Sis a mid-sized track mobile screen aimed at end users requiring high volumes of finished products in applications including topsoil, coal, crushed stone, recycling, iron ore, sand and gravel. p>

User benefits include hydraulic folding conveyors for a quick set-up time, screen walkways and access ladders for ease of maintenance, and a drop down tail conveyor to aid screen media changes

Features & Benefits
  • Output potential up to 500 tph (541 US tph)
  • Radio controlled tipping grid
  • Integrated high capacity variable speed belt feeder
  • Grease filled 2 bearing screen box
  • Heavy duty single shaft screenboxes with adjustable stroke, angle & speed
  • Hydraulic screen tensioning
  • Screen walkway and access ladder
  • Hydraulic folding conveyors with excellent stockpiling capacity
  • Patented fully mounted hydraulic folding auxiliary conveyor ( 3 deck)
  • Engine protection shutdown system
Options
  • Wheel or track mobile
  • Double deck vibrating grizzly
  • Radio controlled tracks
  • Dual Power
  • Roll-in bogie prepared
  • Roll-in bogie equipped
  • Quick release screen wedge tensioning
  • Anti roll-back
  • Auto lubrication system
Specification Table
Track Wheel
Weight 26,900kgs (59,304lbs) 24,700kgs (54,454lbs)
Transport width 3.0m (9'10") 3.0m (9'10")
Transport length 16.53m (54'3") 16.81m (55'2")
Transport height 3.4m (11'3") 3.6m (11'10")
Working width 17.32m (56'10") 17.32m (56'10")
Working length 17.22m (56'6") 17.22m (56'6")
Working height 5.82m (19'1") 6.21m (20'4")
Screenunit 4.81m x 1.5m (16' x 5') 4.81m x 1.5m (16' x 5')



* All information subject to machine configurations & specifications ordered.

** Powerscreen reserves the right to change specifications without prior notice.
