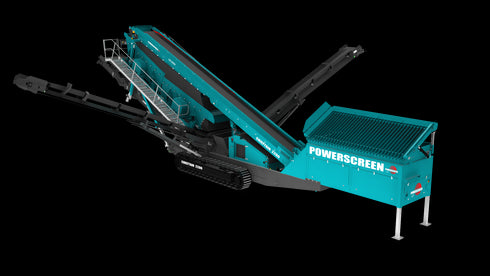

Chieftain 2200 2 Deck

PRODUCT TYPE: Screener

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video
DESCRIPTION

The Powerscreen® Chieftain 2200 is designed for operators who require large volumes of high specification products with maximum versatility. The Chieftain 2200 has two highly versatile double deck screenboxes which provide a total screening area of 19.5m2. It has a revolutionary patent pending drive system which allows switching between 2 and 4 bearing with bolt-on parts. The maximum variability of the Chieftain offers improved capabilities over its class rivals, especially in sticky scalping applications.p>
User benefits include a quick set-up time (typically under 30 minutes) with hydraulically folding conveyors and track mobility. Its high aggression screenboxes handle dirty, sticky material with ease.
    Features & Benefits
    • Output potential up to 650 tph (715 US tph)
    • 2 x Double deck screenboxes
    • Patent pending drive system to switch between 2 and 4 bearing arrangement
    • Radio controlled tipping grid
    • Integrated high capacity variable speed belt feeder
    • Heavy duty single shaft screenboxes with adjustable stroke, angle & speed
    • Hydraulic screen tensioning (bottom deck)
    • Screen walkway and access ladder
    • Hydraulic folding conveyors with excellent stockpiling capacity
    Options
    • Double deck vibrating grizzly
    • Radio controlled tracks
    • Dual Power (additional electric hydraulic drive)
    • Anti roll back
    • Dust suppression
    • Quick release wedge tensioning ( top deck)li>
    • Auto lubrication system
    Specification Table
    Track DDVG Track
    Weight 35,350kgs (78,000lbs) 39,350kgs (86,750lbs)
    Transport width 3.0m (9'10") 3.0m (9'10")
    Transport length 19.79m (64’11") 19.79m (64'11”)
    Transport height 3.55m (11'7") 3.6m (11'10")
    Working width 18.3m (60') 18.3m (60')
    Working length 20.05m (65'10") 20.05m (65'10")
    Working height 7.89m (25'11") 7.89m (25'11")
    Screenunit 2 off 3.3 x 1.55m (11' x 5’) 2 off 3.3 x 1.55m (11' x 5’)
    Total of 6.6 x 1.55m (22' x 5’) 6.6 x 1.55m (22' x 5’)



    * All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
