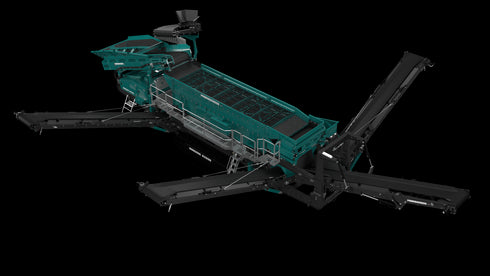

H6203 / H6203R Horizontal Screen

PRODUCT TYPE: Horizontal Screener

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

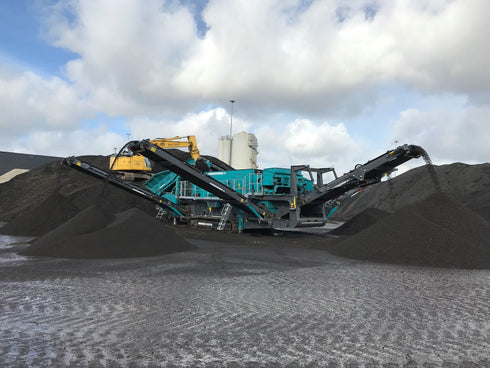

The Powerscreen® H6203 Horizontal Screen is ideal for handling high volumes of sticky materials and for the exact, fine sizing demanded in many construction contracts. The adjustable elliptical throw combines linear and circular amplitude producing an aggressive screening action.

Powerscreen horizontal screen products are especially effective for scalping after a primary impact or jaw crusher and really have outstanding performance when screening out specific small sizes. Ideally suited to applications such as natural and crushed aggregate, coal, iron ore, recycled concrete, and asphalt.

The H6203R model features an recirculating swivel conveyor for oversized product. The conveyor is used to return product back to the feeder.
    Features & Benefits
    • Output potential up to 800 tph (882 US tph)
    • High capacity variable speed belt feeder
    • Oil bath screenbox bearing lubrication
    • Screen walkway & access ladder
    • Hydraulic folding stockpiling conveyors
    • Engine protection shutdown system
    • Heavy duty triple shaft screenbox with adjustable stroke, angle & speed
    • Elliptical throw adjustable up to 19mm (3/4")
    • Diesel hydraulic power unit
    • Heavy duty, low ground pressure tracks
    • Direct feed hopper with impact bars & rollers (R version only)
    • Mid-over's product tail conveyor (R version only)
    • Oversize product side conveyor (R version only)
    • Full walkway access on three sides of screen
    • Radio controlled tracking
    • Hybrid (additional electric hydraulic drive) Horizon 6203R only)
    • Roll-in bogie prepared
    • Roll-in bogie equipped
    • Variable speed incline apron feeder
    • Auto lubrication system
    • Wear resistant or mild steel punch plate screens
    • Hinged trap doors offering blending options between decks
    • Oversize product recirculating swivel conveyor, used to transfer return product from recirculating crusher back to feeder (Horizon 6203R only)
    Specification Table
    H6203 H6203R
    Weight 102,955lbs
    Transport width 10' 6"
    10' 6"
    Transport length 64' 3"
    62' 4"
    Transport height 11' 10"
    11' 10"
    Working width 53' 3" 53' 4"
    Working length 61' 10" 69' 11"
    Working height 15' 9"
    15' 5"
    Screenunit  20' x 6' 3" 20' x 6' 3"
    Screenunit type Triple Shaft Triple Shaft


    * All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
