Titan 2300 Scalper Screen


VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

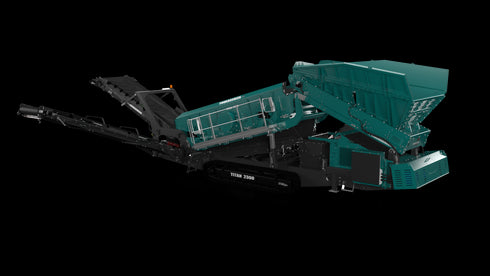

The Titan 2300 is a completely new machine to Powerscreen in terms of concept and design, encompassing the largest belt feeder in any of the Powerscreen range at 1500mm (60”), with twin gear box drive and a combination of impact bars and impact rollers for optimum power usage. It also has the steepest hopper ever designed by Powerscreen to enable ease of emptying without bridging, with an eye specifically on the recycling market.

The body of the hopper is manufactured with wear resistant steel and a rear folding door to take a crusher feed. A low speed feeder is fitted as standard, with a medium speed option for low density material which, while sacrificing some torque, can run at up to 50% faster than standard.

      Features & Benefits

      • High capacity up to 700 tph / 771 US tph*

      • Maximum feed size 450mm (18’’)

      • Twin drive inclined belt feeder featuring impact bars & impact rollers

      • Large capacity hopper manufactured from wear resistant steel - optional extensions available

      • Jack up screen facility for access to screen media & collection conveyor

      • Aggressive single shaft, 2 bearing screen

      • Maximum mobility with heavy duty, low ground pressure tracks complete with removable pendant remote control system

      • Hydraulically folding side conveyors for transport

      • High performance hydraulic system - cast iron pumps & motors complete with hydraulic cooler

      • Capable of a 3-Way or 2-Way material split, this highly versatile screener can be operated as a standalone unit or as a secondary scalper in a wide variety of applications


        • Auto lubrication system

        • Radio controlled tracking

        • Reverse side conveyors

        • Rubber screen blanket

        • Magnetic head drum & chutes (Fines, Mids & Tail conveyors - chutes removed for transport on the side conveyors)

        • Quick release wedge tensioning (side tensioned only

          Specification Table



          Transport length

          59' 10"

          Transport width

          9' 11"

          Transport height

          11' 10"

          Working length

          54' 3"

          Working width

          50' 5"

          Feed height

          16' 2"

          Screenbox size

          20' x 6'

          * All information subject to machine configurations & specifications ordered.

          ** Powerscreen reserves the right to change specifications without prior notice.
