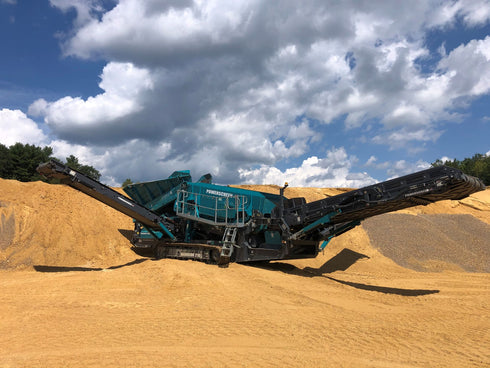

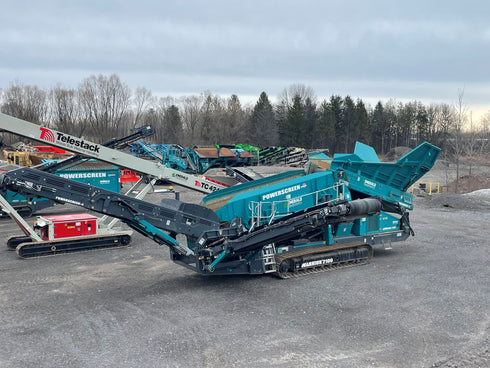

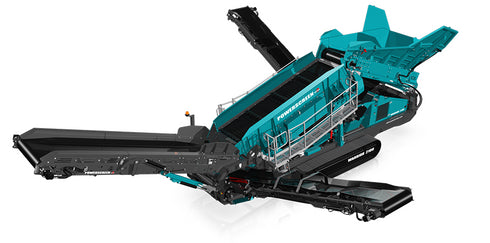

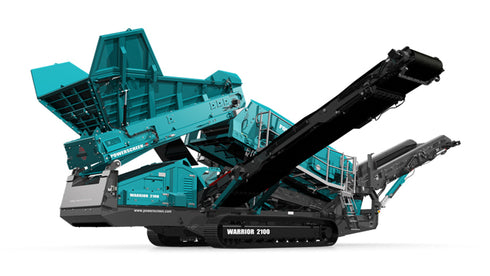

Warrior 2100

PRODUCT TYPE: Scalper Screener

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

DESCRIPTION

The Warrior 2100 is engineered to include the proven Triple Shaft technology which is unique to Powerscreen heavy duty mobile screens. The triple shaft design ensures that the 16′ x 5′ screen box is highly efficient while maintaining exceptional throughput productivity. The extreme screening acceleration offers the Warrior 2100 improved capabilities over its class rivals, especially in sticky scalping applications. Whilst the Warrior 2100 sits within the same transport envelope as other machines in the 16′ x 5′ class, it has been proven to considerably outperform any conventional single shaft 16′ x 5′ screen.

It is designed with economy in mind, with reduced fuel consumption being achieved through a lower engine running speed of 1800rpm and enhanced hydraulics. Optional on-board Envirotrak systems provide further energy saving technologies like Dual Power and Fuel-Save mode. A variety of media solutions mean that the Warrior 2100 is extremely efficient in scalping, screening and recycling applications and it can process mixed demolition waste including grass, soil, concrete, wood and asphalt

    Features & Benefits
    • Output potential up to 700 tph (772 US tph)
    • Heavy duty, 2 deck screen box featuring Triple Shaft technology with adjustable screen timing, amplitude and frequency
    • Hydraulic folding conveyors with excellent stockpiling capacity
    • Side conveyors can be switched
    • Rigid one piece hopper for optimum material flow
    • Rigid one piece hopper
    • Two speed tracksli>
    • Low engine running speed to improve fuel consumption
    • Jack up screen facility to aid mesh changes
    • Collection conveyor raise feature for enhanced serviceability
    • Screen walkway and access ladder
    • Engine protection shut down system
    Options
    • Chassis riser (8”)
    • Telescopic side conveyors
    • Hydraulically folding hopper extensions
    • High capacity incline apron feeder
    • 2 or 3 way split configuration
    • Dual power (additional electric hydraulic drive)
    • Auto lubrication system
    • Radio controlled tracking
    • Wide range of screen media
    • Quick release screen wedge tensioning
    • Dust suppression
    Specification Table
    Warrior 2100 3 Way Split
    Weight 34,800kgs (76,720lbs)
    Transport width 3.0m (9'10")
    Transport length 16.02m (52'7")
    Transport height 3.4m (11'2")
    Working width 13.6m (44'7")
    Working length 16.3m (53'5")
    Working height 4.5m (14'9")
    Screenunit 4.88m x 1.5m (16'x5')
    Screenunit is a triple shaft screenbox

    * All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
