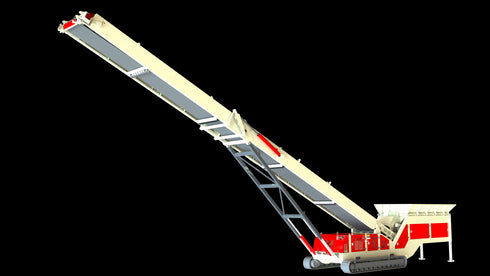

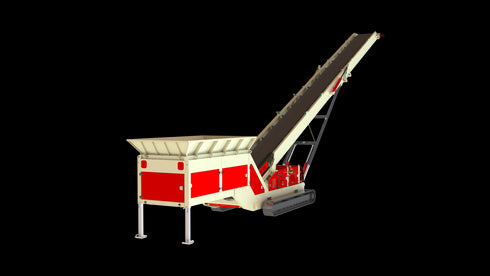

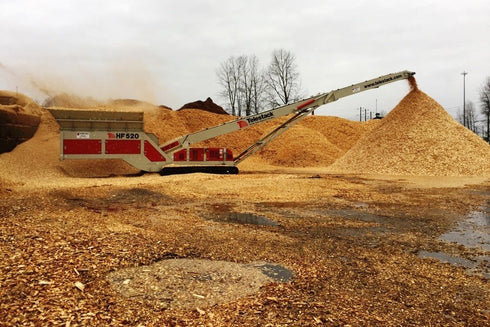

HF 520 Hopper Feeder

Name: HF 520 Hopper Feeder
Brand: Telestack
Availability: InStock

PRODUCT TYPE: Hopper Feeder Conveyor

VENDOR: Telestack

Add To Compare Added To Compare

CLICK HERE to download brochure

CLICK HERE to view video

DESCRIPTION

The Telestack Range of Mobile Hopper Feeders and Mobile Low Feeders are designed to be loaded directly from wheel loaders, grab cranes, excavators etc. The mobile range can be used to stockpile material, feed auxiliary equipment, reclaim to other conveyors, directly load ships, trucks, rail wagons etc at production rates of up to 2500TPH

Features

Output Potential: up to 550 US tph
48” wide feeder belt
14’ 9yd3 hopper capacity
42” x 66’ belt
CAT C4.4 100hp water cooled engine
Hydraulic raise / lower incline conveyor
Heavy duty mid section for large lump size
Heavy duty folded plate section
Hydraulic folding head section
Heavy duty 13’ x 16” shoe tracks

Options

Dual power ( electric motor driven)
Hopper with bolt-in liners
12 / 16yd3 hopper capacity
Up to 10” feed material
Dust covers / Suppression
Belt weighers
Feedboot extensions
Feedboot bolt in liners
Anti roll back measures

Specification Table

**HF 521**
Weight (Est)	38,581lbs
Transport width	8' 11”
Transport length (head folded)	53’8”
Transport height (head folded)	9’11”
Discharge height	29’6”
Stockpile capacity	t
