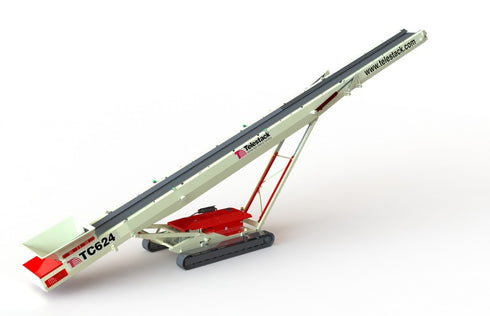

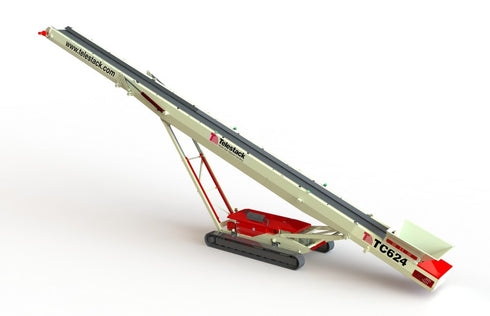

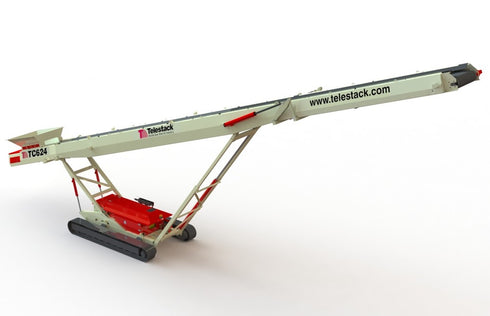

TC624 Conveyor

PRODUCT TYPE: Track Conveyor

VENDOR: Telestack

CLICK HERE to download brochure
CLICK HERE to view video

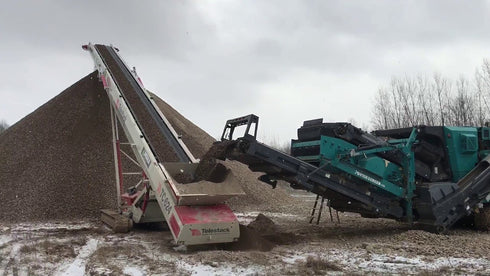

The Telestack range of track mounted conveyors is the ideal solution for material handling requirements in the crushing, screening and organics markets. The mobility and flexibility of the stockpiling conveyors reduces / eliminates to use of a wheel loader on site; Reduces fuel, labor and maintenance costs by up to 80% and Reduces contamination in stockpiled material due to less material handling.

The range of stackers ensures all applications are catered for from heavy duty primary jaw crushing applications to light duty screening applications.

    • Output Potential: up to 600 US tph
    • 42” x 70’ belt
    • Deutz 67hp air cooled engine
    • Raised feedboot to reduce spillage
    • Heavy duty mid section for large lump size
    • Twin conveyor drive for maximum power
    • Hydraulic folding tail / head section
    • 13’ x 16” shoe tracks
    • Dual power ( electric driven belts)
    • All electric conveyor
    • Radio remote control
    • Up to 10” feed material
    • Dust covers / Supression
    • Belt weighers
    • Feedboot extensions
    • Feedboot extensions
    • Anti roll back measures
    Specification Table
    Weight (Est) 36,300lbs
    Transport width 8' 11”
    Transport length (head & tail folded) 39’2”
    Transport length (head folded) 50’2”
    Transport height ( head & tail folded) 9'7”
    Transport height (head folded) 9’7”
    Discharge height 36’
    Stockpile capacity 3,611yd3 / 4,870t

    * All information subject to machine configurations & specifications ordered.

    ** Telestack reserves the right to change specifications without prior notice.
