LF520 Low Feeder

PRODUCT TYPE: Hopper Feeder Conveyor

VENDOR: Telestack

CLICK HERE to download brochure
CLICK HERE to view video

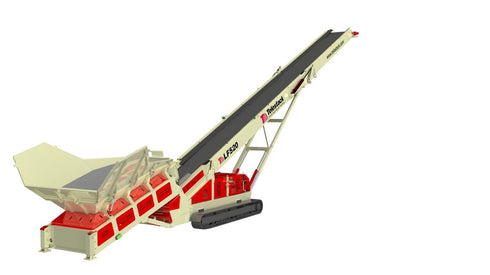

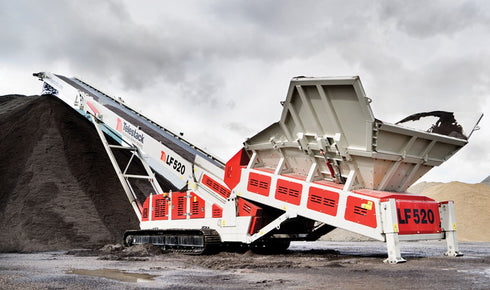

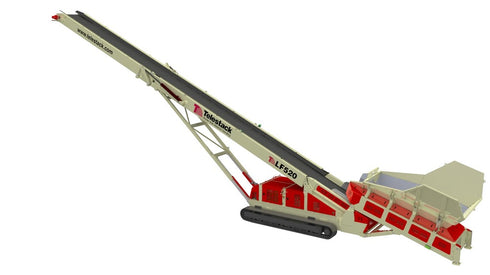

The Telestack LF 520 is a track mounted fully mobile conveyor designed to work at production rates of up to 550 Tph. Telestacks low feed, hopper feeder range is designed to be loaded directly from wheel loaders, grab cranes, excavators etc. feed auxiliary equipment, reclaim to other conveyors, directly load ships, trucks, rail wagons etc. Since the hopper feeder is track mounted the unit has excellent mobility on site and will eliminate double handling of material, which reduces overall costs for operator..
    • 9.5yd3 hopper capacity
    • up to 550tph with a 6” feed size
    • 48” x 65’ conveyor
    • CAT 130hp water cooled engine
    • Maximum distance between tracks and had drum
    • Front and rear adjustable telescopic to obtain desired discharge or feed in height
    • Engine protection shutdown
    • Folding head and telescopic rear for ease of transport
    • Manual folding hopper sides
    • 13’ x 16” shoe tracks
    • Bolt in Feed boot liners
    • Adjustable feed gate
    • Belt weigher
    • Twin drives
    • Dust suppression measures
    • All electric / dual power
    • Remote
    Specification Table
    LF 520
    Weight (Est) 45,195lbs
    Transport width 9’6”
    Transport length (head folded) 53’4”
    Transport height (head folded) 10’1”
    Discharge height 24’6”
    Stockpile capacity 1,034yd3 / 1,394t

    * All information subject to machine configurations & specifications ordered.

    ** Telestack reserves the right to change specifications without prior notice.
