MH5680 Revolution Mulch Hopper Feeder

PRODUCT TYPE: Hopper Feeder Conveyor

VENDOR: Telestack

CLICK HERE to download brochure
CLICK HERE to view video

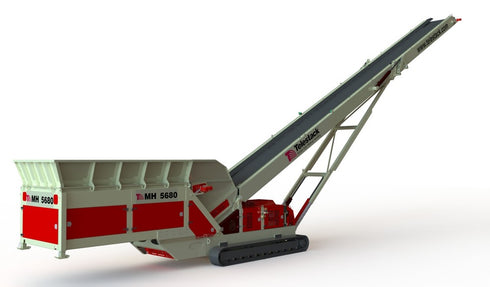

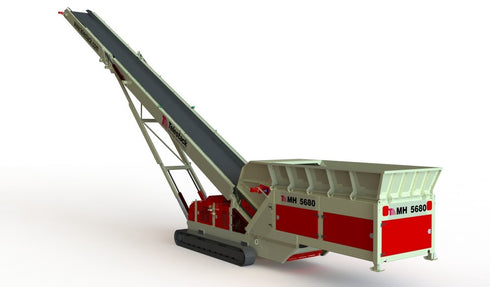

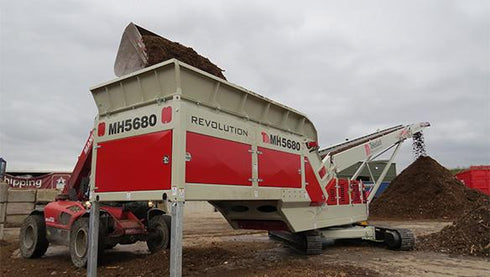

The Telestack MH 5680 is a track mounted fully mobile feeder conveyor designed to stockpile materials such as mulch, biomass, woodchips, shredded pallets, wood pellet, green waste, palm kernel shells etc. It can be directly fed by wheel loaders, grab cranes, wood grinders, shredders, screeners or trommels. The MH 5680 has a 56” wide feeder belt and steep 70° hopper sides. These features maximise the hopper opening to allow material to flow unrestricted onto the Incline conveyor. A rotating auger at the outlet aerates and untangles difficult materials and regulates the flow onto the incline conveyor.

The unit has excellent mobility on site and will eliminate double handling of material, which reduces overall costs for the operator.

    • Output Potential: up to ** US tph
    • 48” wide feeder belt
    • 15yd3 hopper capacity
    • 42” x 66’ belt
    • CAT C4.4 100hp water cooled engine
    • Front and rear adjustable telescopic to obtain desired discharge or feed in height
    • Engine protection shutdown
    • Chevron incline belt
    • Hydraulic folding head section
    • Heavy duty 13’ x 16” shoe tracks
    • 360° rotation with Revolution
    • CAT 130hp water cooled engine
    • 12 / 16yd3 hopper capacity
    • Up to Track / drive drum upgrade
    • Dust covers / Suppression
    • All electric / dual power
    • Belt weighers
    • Feedboot extensions
    • Feedboot bolt in liners
    • Anti roll back measures
    Specification Table
    MH5680 MH5680 Revolution
    Weight 43,770lbs 50,375lbs
    Working width 9’ 10’2”
    Working length 79’ 4” 79’4”
    Transport length (head folded) 61’ 9” 61’9”
    Transport Width 9’ 3” 10’ 2”
    Transport Height (head folded) 10’ 1” 11’ 5”
    Stockpile Capacity 2,280yd3 2,600yd3


    * All information subject to machine configurations & specifications ordered.

    ** Telestack reserves the right to change specifications without prior notice.
